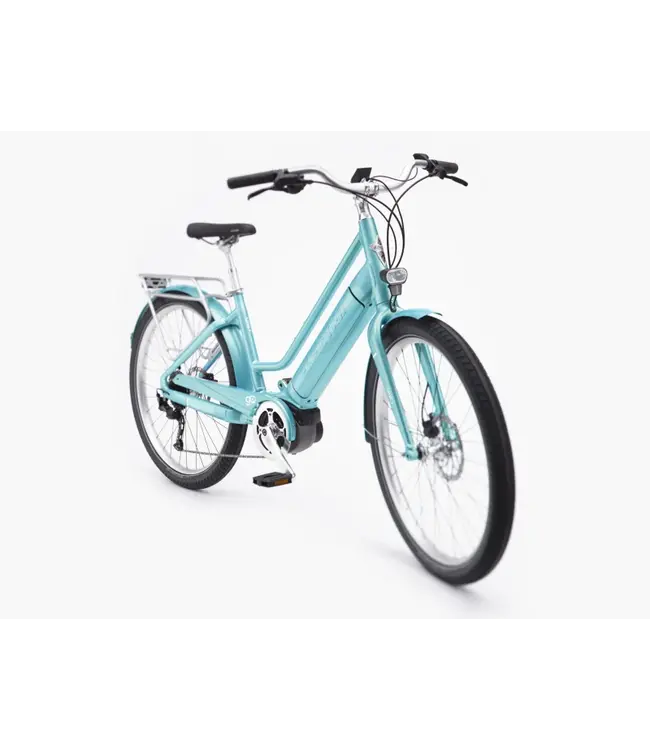

Powered by a Bosch Active Line Plus motor and outfitted with Bontrager E6 Hard-Case Lite 27.5" tires, hydraulic disc brakes and suspension seatpost, this bike is sure to give you a smooth ride on any terrain. The Bosch Kiox display delivers data on speed, performance, battery charge and more, while adapting to lighting conditions for readability.
| Frame | 6061-T6 aluminum w/ patented Flat Foot Technology® |
|---|---|
| Fork | Alloy hydroformed |
| Hub front | Alloy low-flange w/6-bolt disc, 32h, 12mm thru-axle |
|---|---|
| Skewer front | Alloy thru-axle, 12mm x 143mm |
| Hub rear | Alloy low-flange w/6-bolt disc, 32h, 12mm thru-axle |
| Skewer rear | Alloy thru-axle, 12mm x 174mm |
| *Rim | Size:Â M Alloy double walled 27.5''x32h |
| Size:Â M Alloy double walled 27.5''x2h |
|
| Tire | Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40'' |
| Battery | Bosch PowerTube 500 |
|---|---|
| Charger | Bosch standard 4A, 100-240V |
| Computer | Bosch Kiox with Anti-theft solution |
| Motor | Bosch Active Plus, 250 watt, 50 Nm, 20mph or 32km/h |
| Shifter | Shimano Alivio M3100, 9 speed |
|---|---|
| Rear derailleur | Shimano Alivio M3100, long cage |
| *Crank | Size:Â M ProWheel alloy, 170mm length |
| Size:Â M Forged alloy 170mm, Bosch type |
|
| Chain ring | Steel 40T w/alloy guard |
| Cassette | Shimano HG200, 11-36, 9 speed |
| Chain | KMC E9T EPT anti-rust |
| Pedal | Resin platform w/grip tape tread |
| Saddle | Selle Royal Essenza Plus |
|---|---|
| Seatpost | Alloy suspension post 27.2x400mm, 40mm travel |
| Handlebar | Alloy custom bend |
| Grips | Electra Vale custom ergo Kraton w/alloy locking collars |
| Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
| Headset | FSA e2 integrated |
| Brake | Tektro hydraulic disc |
| *Brake rotor | Size:Â M Tektro, 180mm, 6-bolt |
| Size:Â M Tektro, 6-bolt, 160mm |
|
| Rotor size | Front: 180mm, rear: 160mm |
| *Light | Size:Â M Spanninga Axendo XE, LED, headlight |
|---|---|
| Size:Â M Spanninga Presto XE, LED, taillight |
|
| Kickstand | Alloy, rear mount |
| Cargo rack | Rear MIK compatible rack |
| Extras | Painted chainguard, ring lock mounts, stainless steel and anti-rust hardware, and reflective decals on the frame and fork |
| Weight | M - 24.45 kg / 53.91 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
